System Analyzer Software For Power Meter
Smart Analyser is the most effective & Powerful Data Management Software available. It Monitors all Power Parameters including Demand & Harmonics. The Software can moniter data from KUSAM-MECO power meters (KM-PM-8100, KM-PM-7200,KM 6300, KM 9600).

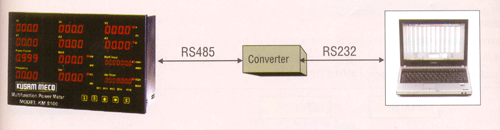

This software kit consists of CD, USB Hardware lock, RS485-RS232 converter, one meter length communication cable. On Installing the software using the CD, the PC will prompt the user forthe "Hardware Lock" . The hardware lock is to be connected to a USB port on the PC. After the RS 485 converter is connected to the meter & the PC, the communication is established.
Transformer Testing : Feeder Monitoring in Steel / Power Plants.
The data from the meter can be viewed on the PC in text as well as graphical form.
The different types of screens available in the software are :
1. Realtime values display of all parameters measured by the power meters.

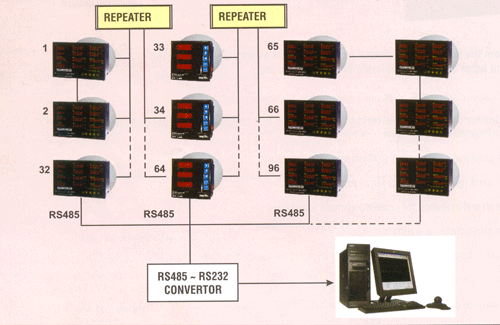

2. RS 485 communication status of all meters connected. ( 256 Nos. meters can be connected for monitoring data which can increase by using repeaters ) .
3. Real time graphical displays of all parameters with zoom facility.
4. Historical trend ( graphical format ) for all parameters
5. Alarm report and indication for exceeded alarmed parameters
6. Tariff ( for cost checking energy bills )
7. KWH report in tabular format with total consumption for the selected period
8. Bar graph and pie chart for KWH report
9. Emailing alarmed parameters on exceeding alarm set limits
10. PC base Audio and Visual alarm indication
11. Backup, restore, delete facility for data
12.User selectable data logging interval.
13.Report Generation in Excel format of all stored data.
With help of the software we can :
• Do comparison of all parameters through graphical representation.
• Do statistical analysis of parameters (i.e.max. / min. / average demand of a day / month).
• Generate report of present & previous data.
