Digital Storage Oscilloscopes

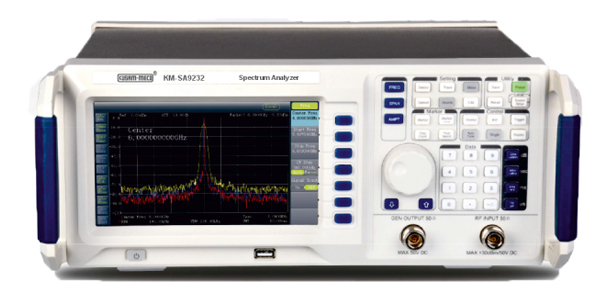

Model - KM-SA9232
Features
• Frequency range from 9kHz to 7.5Ghz
• <-100 dBc/Hz @10 kHz Offset Phase Noise (Typ.)
• Total Amplitude Accuracy<0.8 dB
• Preamplifier and EMI filter are standardly configured
Technical Specifications :
• Frequency
• Range: 9kHz∼3.2GHz
• Resolution: 1Hz
• Frequency Span
• Frequency Span Range: 0Hz,100Hz∼3.2GHz
• Uncertainty: ±span/(sweep points−1)
• SSB Phase Noise: -96dBc/Hz (10kHz offset, fc=1.0GHz)
• Bandwidth
• Resolution Bandwidth (-3dB): 10Hz∼1MHz, step 1−3−10
• RBW Uncertainty: 10%, nominal (RBW>1kHz) 20%, nominal (RBW≥10Hz, sweep time ≥5s)
• Video Bandwidth (-3dB): 1Hz to 1MHz, step 1−3−10
• Amplitude
• Range: DANL to +20dBm
• Maximum Input Level: DC Voltage: 50V
CW RF Power:+20dBm(0.1W)
Max. Damage Level:+30dBm(1W)
