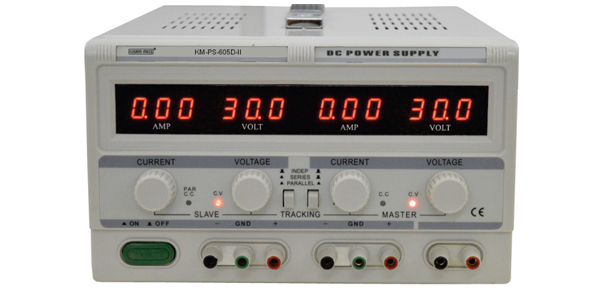

Linear Dc Power Supply
Model - KM-PS-605D-II
Features
• Panel design, Simple, generous and beautiful; Easy operate and cheap cost
• Two adjustable outputs and one 5V/3A fixed output
• Two-way regulated power supply can be randomly in series, in parallel or in dependently according to requirements. And do not need external connection, just control by switch
• Have constant voltage and constant current operation mode. C.C and C.V convert automatically;Working time more than 8 hours continuously.
• Low Ripple and Noise; 4groups 3 LED digital display; Have current limitation protection.
Specification:
• Input voltage: 220V 60HZ
• Operating temperature: 0°C to 40°C; Relative humidity: <80%
• Storage temperature:-10°C to 70°C ; Relative humidity: <70%
• Output voltage: 2*0-64V
• Output current: 2*0-5A
• Series voltage / current: 0-128V / 0-5A
• Parallel voltage / current: 0-64V / 0-10A
• Current effect: CV ≤ 1×10-4+ 0.5mV / CC ≤ 2×10-3+ 6mA
• Load effect: CV ≤ 1×10-4+ 2mV (output current ≤ 3A); ≤ 1×10-4+ 5mV (output current > 3A); CC ≤ 2×10-3+ 6mA
• Ripples and noises: CV ≤ 0.5mVr.m.s. (Output current ≤ 3A); ≤1.0mVr.m.s. (Output current > 3A); CC ≤ 3mAr.m.s.
• Voltage display accuracy: ±1% +2 figures;
• Current display accuracy: ±2% +2 figures
• Dimension : Approx. 520*390*260
• Weight : Approx. 16KG
