Multifunction Power & harmonics Analyzer

Multifunction Power & harmonics Analyzer MODEL- KM 2300

Features :
• Display : 5.6'TFTLCD,640x480, Adjustable

• Waveform real-time display(4 voltages/4 currents)
• Half cycle RMS measurement (voltage and current)
• Intuitive operation

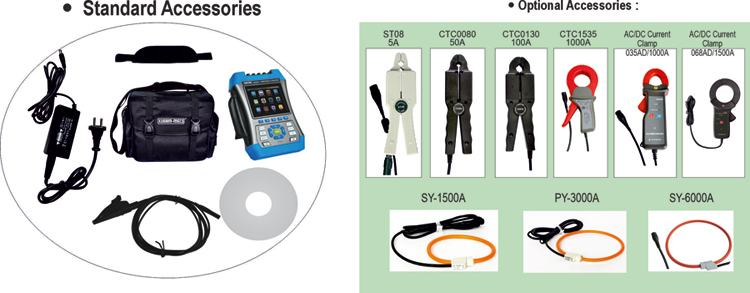

• Variety of optional current clamps
• Measure DC component
• Measurement of harmonics can be up to 100 times.
• Transient capture
• Vector, Trend, Bar Graph and events table display
• Active power, reactive power, apparent power and
energy, shift power factor and true power factor.
• Three-phase unbalance (voltage and current).
• Flicker
• Inrush current
• Detect according to EN50160 or grid with user-defined limit.



• Detection and record of Dips & Swells, Voltage Rapid Change, Interruption.
• Detect according to EN50160 or grid with user-defined limit.
• Data storage and screenshots (can be replayed or output to a PC)
• Through the LAN interface PC can keep real-time remote communication with the Analyzer, operate the Analyzer and download measurement data.
• Built-in 32G memory card.
• WIFI communication is supported.
