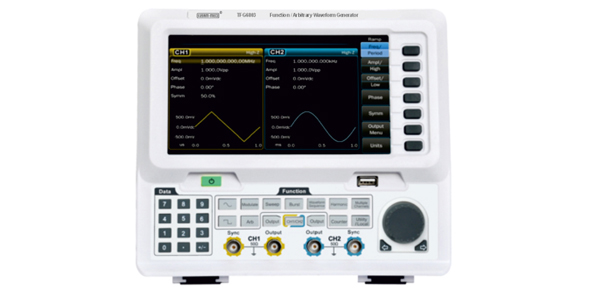

Function / Arbitrary Waveform Generator
Model - TFG6803
Features
• 250MSa/s sample rate, 16bit vertical resolution and 16Mpts waveform length
• Rise/fall time of Square: ≤4.2ns
• Removable PA (option)
• Optional IOT interface
• High precision frequency counter
• 7" touch screen display
Frequency :
• Sine/Square :1μHz∼35MHz
• Pulse :1μHz-25MHz
• Ramp: 1μHz-3MHz
• PRBS: 1kbps∼60Mbps
• Noise (-3dB): 100MHz bandwidth
• Other: 1μHz∼20MHz
• Resolution: 1μHz or 12 digits
• Accuracy: ±(20ppm+4pHz)
DC Offset (High-Z):
• Rang : ±10Vpk(ac+dc)
•Resolution : 1mVdc
• Pulse (Rise/Fall Time): ≥8ns
• Accuracy : ±(| setting value |x1%+amplitude value x0.5%+2mV)
