Digital Storage Oscilloscopes

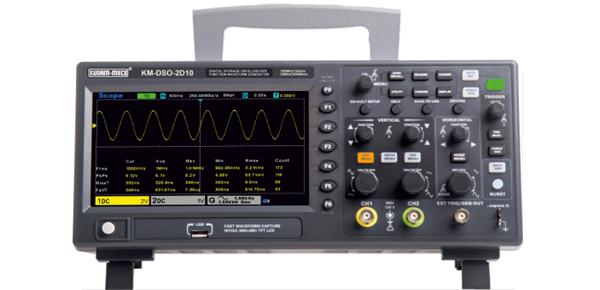

Model - KM-DSO-2D10
Features
• Display : 7 inchs TFT (diagonal liquid crystal)
• Display Resolution : 800 (horizontal) * 480 (vertical) pixels
• Display type : Point, vector
• Waveform brightness : Adjustable
• Grid type : Optional
• Grid brightness : Adjustable
• Screen brightness : Adjustable
• Persist : 1s, 5s, 10s, 30s, infinite
Technical Specifications :
• Bandwidth : 100MHz
• Oscilloscope Channels : 2CH
• Waveform Generator : 1CH
Orizontal :
• SEC/DIV Range : 2ns/div to 100s/div, in a 1, 2, 5 sequence
Vertical:
• VOLTS/DIV Range : 2mV/div to 10V/div at input BNC
• Low Frequency Response (-3db) ≤10Hz at BNC
• Rise Time at BNC, typical : ≤3.5ns
Acquisition :
• Sample rate : 1GSa/s (single channel); 500MSa/s (two channels)
• Equivalent sampling : 50GSa/s
• Acquisition Modes : Normal, Peak, Average and High Resolution
Trigger:
• Mode : Auto, Normal, single
Input :
• Number of channels 2 analog channels
• Input coupling : DC, AC, GND
• Input impedance : 1MΩ±2% 20pF±3pF
• Probe attenuation : 1X, 10X
• Supported Probe Attenuation Factors: 1X, 10X, 100X, 1000X
• Voltage rating : 300V CAT II
• Maximum input voltage : 300VRMS (10X)
• Isolation between channels >40dB
• Delay deviation between channels <500ps
