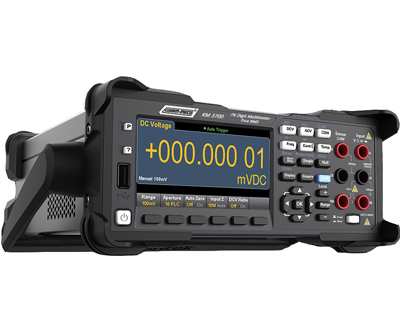

7½ Digit Bench Top TRMS Digital Multimeter Model KM 3700
KM 3700
Features :
• 7½ digits digital DMM with 1nV resolution, With 20 ppm basic DCV accuracy.
• Up to 10,000 memory points. Fast reading speeds up to 30,000 readings per second.
• 4.3-inch LCD color display. True RMS AC (voltage & current) measurement.
• Measure DC current down to 1µA range and 0.1pA resolution.
• Graphical display with built-in bar, trend charts, histogram, and statistics.
• Front and rear input terminals provide ideal connection space for bench and system test.
• Dual display allows clear and quick view of voltage and frequency measurements at the same time.
• Various measurements: ACV, DCV, ACI, DCI, 2-wire and 4-wire resistance, capacitance, frequency, period, diode, continuity, temperature.
• Multiple connectivity options - USB 2.0, serial interface RS-232/485, optional LAN, optional GPIB.
• SCPI commands standard.
