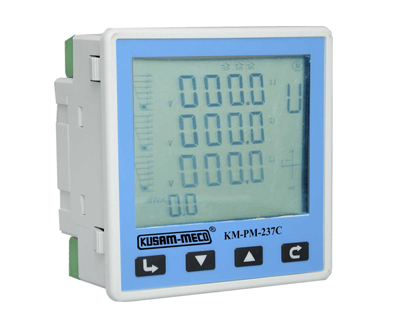

Digital Multifunction Trms Power Meter Model- KM-PM-237C
MODEL- KM-PM-237C
Multifunction Power meters is suitable for Control Panels, Monitoring Power & Control in 3f 3wire & 3f 4wire systems. Current, Voltage, Power, Energy, & Harmonics measurement.
Current Measurement :
• Acc. Range : ±0.3%rdg (0.5% FS～100%FS)
• Voltage : 0.2%(30～600V AC)
• Grid frequency : 0.01%(45～65Hz)
• Power factor : ±0.005
• Active and apparent power : IEC62053-22 level 0.5S
• Reactive power : IEC62053-21 level 2S
• Active energy : IEC62053-22 level 0.5S
• Reactive energy : IEC62053-21 level 2S
Measuring Data :
• Harmonics : The total harmonics of each phase of voltage and current
• Phase Voltage : U1, U2, U3 and average value.
• Line Voltage : U12, U23, U31 and average value.
• Current : I1, I2, I3 and average value.
• Power : Active power, Reactive power, Apparent power (total and per phase).
