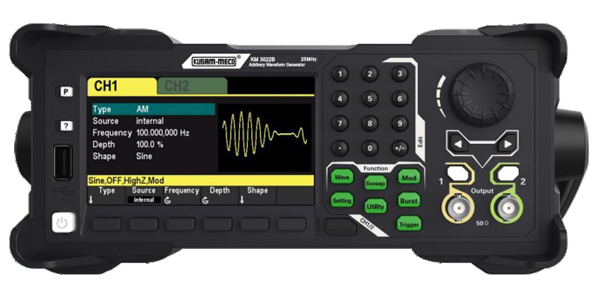

25MHz Arbitrary Waveform Generator
Model - KM 3022B
Features
• Frequency Range : 25 MHZ sine wave frequency. 15 MHz square wave frequency
• Frequency sweep and burst capability.
• Built-in function generator includes: sine, square, triangle, pulse, noise, harmonic.
• Arbitrary waveform generator with 2M waveform length, 16-bit resolution
• Built-in more than 160 arbitrary waveforms, including exponential rise, exponential fall, ECG, gauss, haversine, Lorentz, dual-tone, DC etc.
• Support AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK and PWM modulations.
• Built-in high-order harmonic generator (at most 16-order harmonics).
• Abundant I/O: waveform output, sync signal output, modulation input, 10MHz external time base input/output, and trigger input/output
• Waveform creation PC software included.
• USB remote interfaces.
• SCPI Compatibility. For easy instrument programming
General Speicification:
• Display : 4.3-inch color TFT LCD screen
• Built in 7 digit / second high resolution 80MHz frequency counter.
• Operating Temperature: 0 °C to 45 °C
• Storage Temperature: - 20 °C to 60 °C
• Pollution degree : 2
• Power onsumption : < 30W
• Dimension : Approx. 310(L) X 260(W) X 110(H)mm
• Weight : Approx. 3 kg
